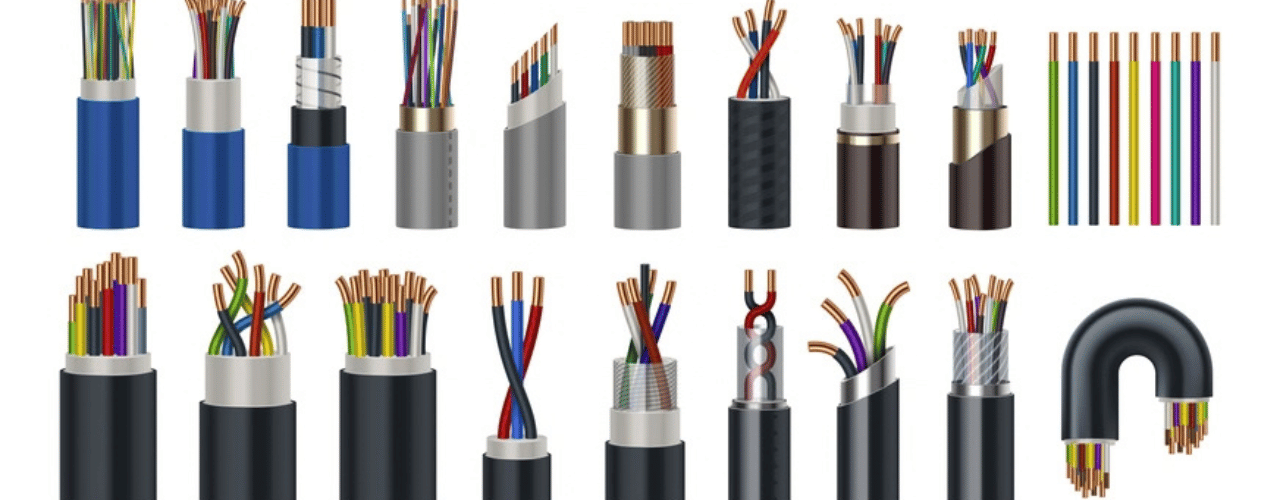

When you specify a custom cable assembly, the connector should not be treated as a final detail added once the cable has been chosen. The connector has to mate with the equipment, suit the cable construction and fit the available installation space. It may also need to support screening, strain relief or environmental protection specified for the application.

The practical point is simple: the cable, connector and mating equipment need to be considered together. Resolving those requirements early can give the cable assembly manufacturer a clearer specification and reduce the likelihood of changes once manufacture begins.

Why does connector selection matter in a custom cable assembly?

A connector defines the interface between the custom cable assembly and the equipment it serves. If that interface is not fully specified, the cable itself can be correct while the finished assembly still does not suit the installation.

For a buyer or engineer, the aim is not to become a connector specialist. The aim is to make sure the manufacturer has enough information to build the complete assembly correctly. That includes knowing what the assembly must connect to, what electrical requirements apply, how the cable needs to exit the connector and what conditions the finished assembly will face.

This can be particularly important when the available space is limited, the assembly needs screening, the connector has a fixed orientation, or the mating equipment already dictates a particular interface. In those cases, connector selection is part of the assembly specification rather than a separate purchasing decision.

This is where working with a manufacturer that can consider the connector as part of the complete custom cable assembly becomes useful. At GEM Cable, we manufacture bespoke cable assemblies and supply a wide range of connectors, so cable, connector and termination requirements can be discussed as part of the same enquiry.

What needs to match between the connector, cable and equipment?

Compatibility is more than checking that two connector halves will physically mate. A useful specification considers the complete interface between the cable and the equipment.

  • Mating interface: The connector must match the receptacle, panel interface or equipment connection. Keying, contact arrangement and orientation may all matter.
  • Electrical requirements: Current, voltage, impedance and screening requirements can affect connector choice. Not every factor applies to every assembly, so the specification should reflect the actual application.
  • Cable construction: The connector system, contacts and termination hardware need to suit the conductor size, insulation diameter, overall cable diameter and any screen or braid that must be terminated.
  • Contact arrangement and pinout: The contact count, arrangement and pin allocation must match the required circuits and the interface at the equipment end.
  • Termination: The specified connector may require a particular crimp, solder or insulation displacement termination. This needs to be compatible with both the cable and the manufacturing process.

How do space, orientation and routing affect the connector choice?

A connector that works electrically may still be unsuitable if it cannot be installed in the available space. This is why drawings, equipment details and installation constraints can be important alongside the electrical specification.

The manufacturer may need to know how the cable should leave the connector, how much clearance is available around the mating point and how the cable will be routed once installed. A straight cable exit may work in one enclosure, while another application may require a different orientation to avoid an excessively tight bend or interference with nearby components.

Our connector range shows how closely these details can be linked. For example, one 1.6/5.6 right-angle crimp connector is specified by compatible cable type, right-angle orientation, crimp termination and 75 ohm impedance. It is a practical example of why the connector cannot always be considered separately from the cable and interface requirements.

Strain relief should also be considered where the assembly may be subject to movement, pulling forces or vibration, or where mechanical loads could otherwise be transferred to the termination. The requirement should be defined around the application rather than added automatically to every assembly.

When do environment and service requirements affect the specification?

The operating environment may change what is required from the connector and the finished custom cable assembly. Temperature, moisture, dust, chemicals, vibration and repeated handling can all be relevant, depending on where and how the assembly will be used.

For example, an assembly used inside protected equipment may have very different connector requirements from one installed in an exposed or frequently serviced location. If sealing, a particular material, a backshell or another form of protection is required, that should be included in the project specification rather than assumed later.

Service access can matter as well. If the connector will be disconnected during maintenance, the buyer may need to consider access, identification and how easily the connection can be inspected or replaced. If the connection is intended to remain in place, the priorities may be different.

What information should you give a custom cable assembly manufacturer?

A good custom cable assembly enquiry does not need to contain every engineering detail from the first email, but it should give the manufacturer a clear starting point. If a drawing, bill of materials or existing part number is available, that can reduce ambiguity.

  • Cable requirement: Cable type or construction, conductor requirements, screening and the required finished length.
  • Connector details: Connector part numbers where known, the mating interface and the required connector at each end.
  • Pinout: Contact allocation, circuit information or an approved drawing where applicable.
  • Orientation and installation: Required cable exit, available space, routing constraints and any relevant enclosure or panel details.
  • Operating conditions: Any specified temperature, vibration, moisture, chemical exposure or other environmental requirement.
  • Identification: Labels, markers, sleeving or other identification required on the finished assembly.
  • Quantity and revision: Required quantities and the drawing or specification revision that should be manufactured.
  • Testing: Any inspection or test requirements that form part of the agreed specification.

The purpose of this information is not to make the customer design the manufacturing process. It gives the manufacturer the application requirements needed to assess the requirement and manufacture the assembly against the agreed specification.

How should testing be agreed before manufacture?

Testing should follow the assembly specification and the needs of the application. At GEM Cable, every product undergoes 100% testing on our Banair testing system. Our UK manufacturing is supported by an AS9100D and BS EN ISO 9001:2015-certified quality management system, alongside our Class 8 cleanroom capability. It is better to agree those requirements before manufacture than to assume that every cable assembly needs the same set of tests.

Electrical continuity is a common requirement for many assemblies. Other checks may be specified depending on the cable type, connector, customer drawing or application. The important point for the buyer is to define the acceptance requirements clearly and make sure they are understood before production starts.

This keeps the discussion focused on what the finished assembly must demonstrate rather than adding tests that are not relevant to the project.

What happens once the cable and connector requirements are defined?

Once the mating interface, cable and application requirements are clear, the next step is to turn them into a manufacturable assembly specification. At GEM Cable, we manufacture bespoke cable assemblies around agreed cable, connector, length, orientation, identification and testing requirements, subject to the confirmed project scope.

We also supply connectors alongside our cable assembly capability, so related connector requirements can be discussed as part of the same enquiry rather than treated as an unrelated purchase. Our wider assembly capability includes coaxial, multicore, multipair, power and ribbon assemblies.

If you already have an approved drawing or bill of materials, we can work from that information. If you are preparing an enquiry, details of the cable, mating equipment, connector, installation and required testing will help us understand the finished assembly you need.

Discuss your custom cable assembly requirements

If you are specifying a new custom cable assembly or reviewing an existing requirement, speak to our team about the cable, connector, termination and testing requirements. We can review the information provided and confirm the manufacturing scope for your enquiry.
